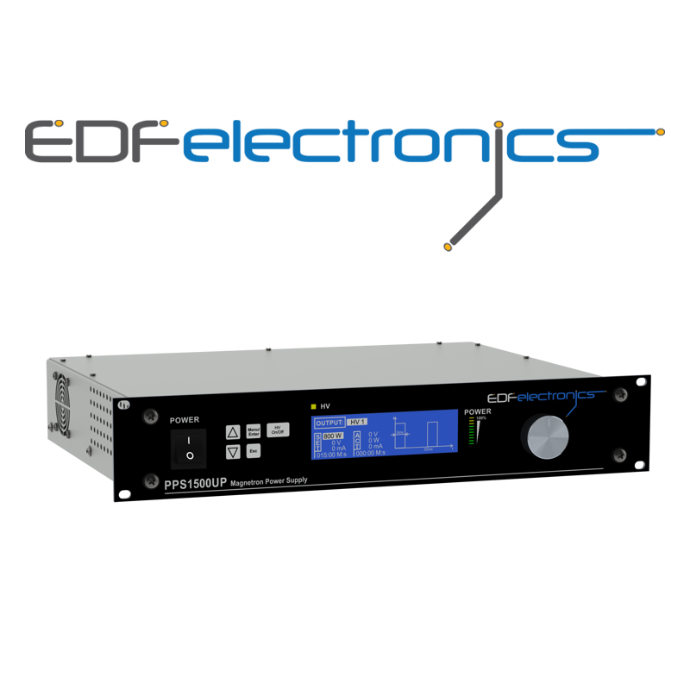

PPS1500U-300 Magnetron Power Supply

https://www.edfelectronics.com/web/image/product.template/14067/image_1920?unique=7db6a53

1500W, 300kHz Unipolar Pulse DC power supply RS232 or RS485 in standard *

*One of the interfaces has to be chosen with the order

0.00 zł 0.0 PLN 0.00 zł

0.00 zł

​

    This combination does not exist.

    Contact Us

    Terms and Conditions
    Lead time 4-6 weeks

    PPS1500U-300



    The MAGNETRON product line includes sputtering power supplies for DC, MF and PulsDC applications for low power and high accurate process stabilisation – up to 1,5 kW. With good arc handling systems our power supplies are perfect for R&D applications and small manufacturing processes, where high accuracy of coating thickness layers are required.


    Output power:    		PPS1500U-120

    1 … 1500 W DC / PulseDC    		PPS1500U-300

    1 … 1500 W DC / PulseDC
    Output Voltage:1200V max in peak1200V max in peak
    Output Current:3A max3A max
    Mode of operation:DC and Pulse DCDC and Pulse DC
    Frequency of operation:10 kHz … 120 kHz for PulseDC10 kHz … 300 kHz for PulseDC
    Main Supply:230 VAC/ 6,15A230VAC/ 6,15A
    User Interface:Graphics LCD 240 x 64
    		Graphics LCD 240 x 64
    Hardware Interface:RS 232 or RS485
    Additional options: EthernetIP, Analog I/O    		RS 232 or RS485
    Additional options: EthernetIP, Analog I/O
    Mobile device control:-–
    Arc Management:Monitoring only
    		Monitoring only
    Duty Cycle3…99%3…99%
    Standards compliancesCE, RoHSCE, RoHS
