PPS1200R
| Frequency of operation | 13.56 MHz |
|---|---|
| Frequency Stability | 0.005% or better |
| RF Power Rating | 1200 Watts nominal into 50 Ohms |
| EXT RF Input Drive for AGC | +0 to +3 dBm for best operation |
| CEX Input | 3Vp-p to 8Vp-p at 13.56 MHz |
| CEX Output | 3Vp-p to 8Vp-p at 13.56 MHz |
| Input and Output Impedance | 50 Ohm |
| IN / OUT VSWR | 1.2:1 max – input, 3:1 max – output |
| Output VSWR Protection | 50 Watts max reflected power limit (Automatic limit within 0.1 ms) |
| Harmonic Level @ 100 W | ≥ – 50 dBc |
| Ramp Operation | Ramp speed: 1 W/s ̶ 99 W/s Controlled via front panel and GUI |

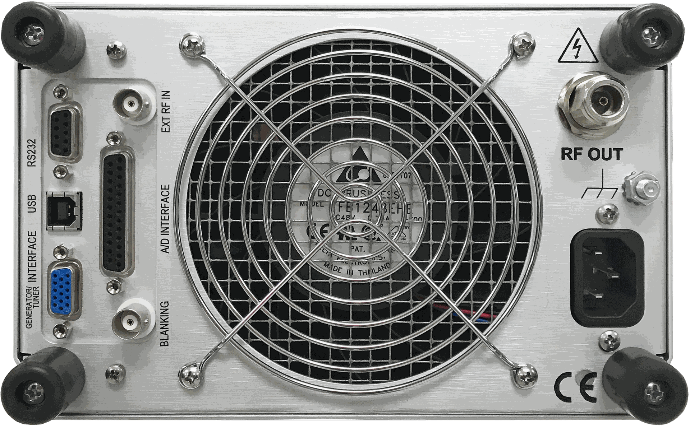

| Communication Interface | Analog ports: SUBD-25 (rear panel) Digital ports: RS-232, RS-422, USB 2.0 (rear panel) |
| Cooling | Forced air, temperature controlled, heatsink temperature monitored for equipment safety at 70C limit., Water at 20C-25C with flow > 1GPM (4LPM) , 70C limit. |
| AC Power | 200-240 V ac, 50-60 Hz, 12 A |
| Weight | 9.0 kg |
| Dimentions [mm] | 5.25” H x 8.75” W x 15.00” L |

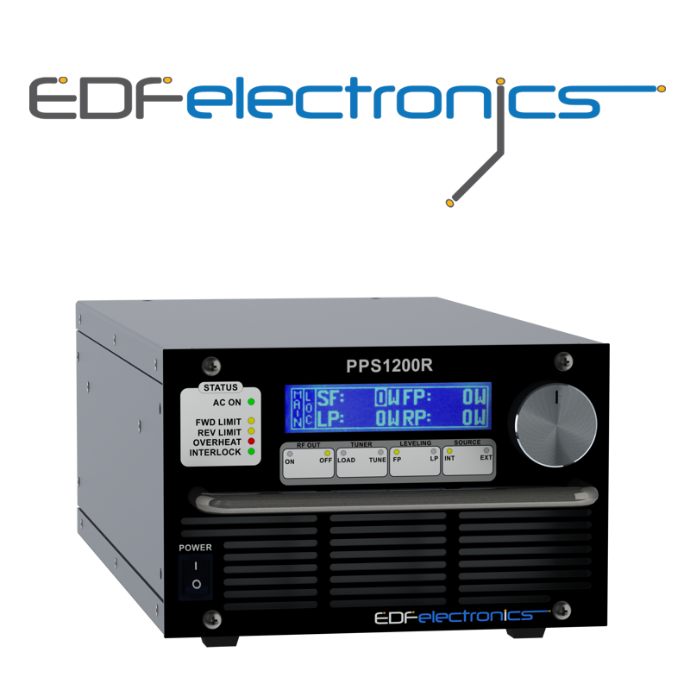

PPS1200R is the Automatic or Manual Tuner/ Matching Network 13.56 MHz, 1200W of power. This system has everything you need to effectively power and monitor your RF application. The generator’s front panel offers an LCD display of Forward, Reflected and Load Power readings, RF Status, and setup screens for AGC and ramp mode operation. In tuner mode, front panel offers status monitoring of Tuner Series with manual tuner control capability and a bank of programmable presets. These compact units work as stand-alone or half rack mounts, with all necessary mounting hardware and cables included upon request.
