PPS1000R - Magnetron Power Supply 1000W

https://www.edfelectronics.com/web/image/product.template/15031/image_1920?unique=bcf3ea9

Plasma power supply

0.00 zł 0.0 PLN 0.00 zł

0.00 zł

    This combination does not exist.

    Terms and Conditions
    Lead time 4-6 weeks


    PPS1000R


    Frequency of operation

    13.56 MHz

    Frequency Stability

    0.005% or better

    RF Power Rating

    1000 Watts nominal into 50 Ohms

    EXT RF Input Drive for AGC

    +0 to +3 dBm for best operation

    CEX Input

    3Vp-p to 8Vp-p at 13.56 MHz

    CEX Output

    3Vp-p to 8Vp-p at 13.56 MHz

    Input and Output Impedance

    50 Ohm

    IN / OUT VSWR

    1.2:1 max – input, 3:1 max – output

    Output VSWR Protection

    50 Watts max reflected power limit (Automatic limit within 0.1 ms)

    Harmonic Level @ 100 W

    ≥ – 50 dBc

    Ramp Operation

    Ramp speed: 1 W/s ̶ 99 W/s Controlled via front panel and GUI

    Communication Interface

    Analog ports: SUBD-25 (rear panel) Digital ports: RS-232, RS-422, USB 2.0 (rear panel)

    Cooling

    Forced air, temperature controlled, heatsink temperature monitored for equipment safety at 70C limit.

    AC Power

    200-240 V ac, 50-60 Hz, 12 A

    Weight

    9.0 kg

    Dimentions [mm]

    5.25” H x 8.75” W x 15.00” L

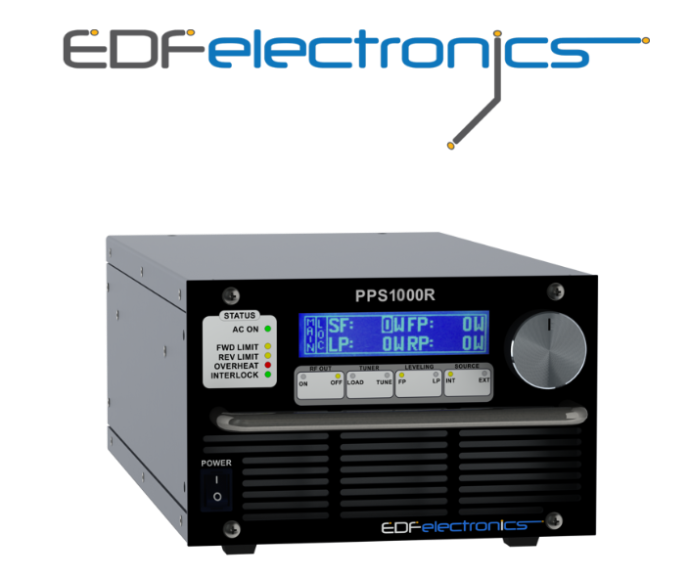

    PPS1000R is the Automatic or Manual Tuner/ Matching Network 13.56 MHz, 300W of power. This system has everything you need to effectively power and monitor your RF application. The generator’s front panel offers an LCD display of Forward, Reflected and Load Power readings, RF Status, and setup screens for AGC and ramp mode operation. In tuner mode, front panel offers status monitoring of Tuner Series with manual tuner control capability and a bank of programmable presets. These compact units work as stand-alone or half rack mounts, with all necessary mounting hardware and cables included upon request.
