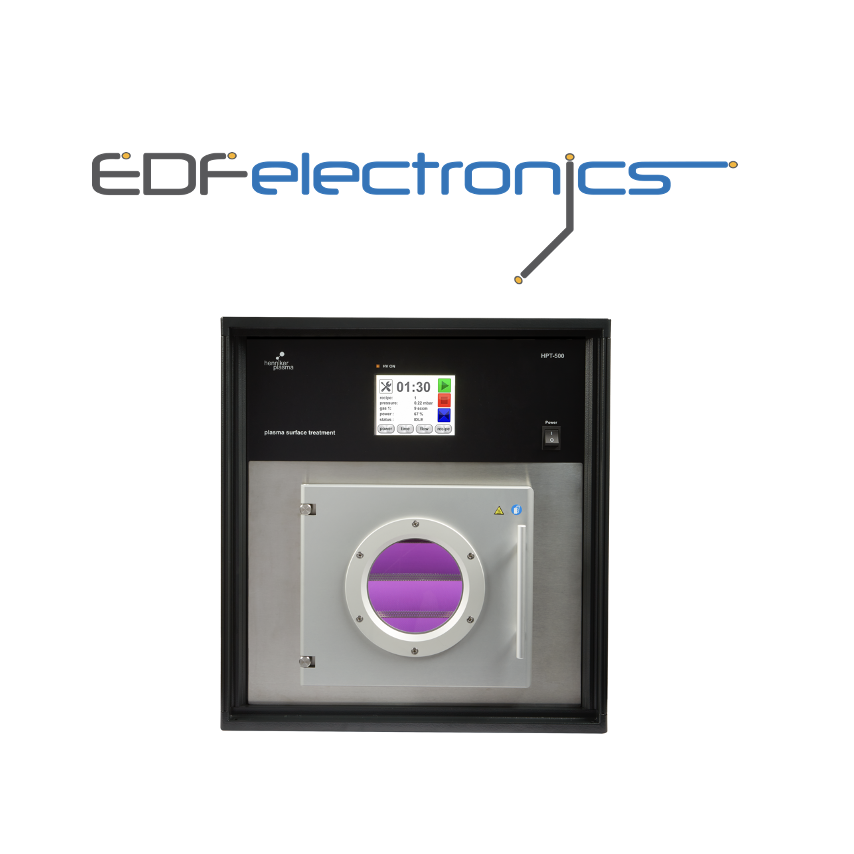

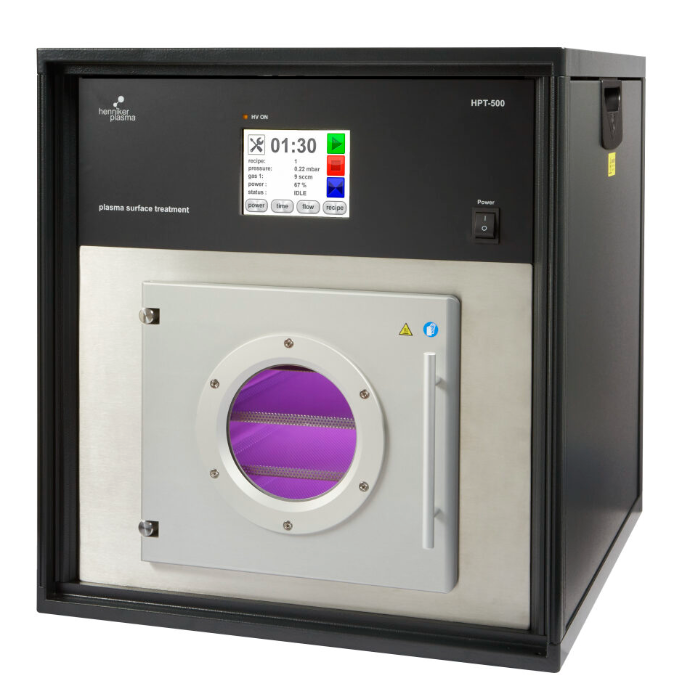

HPT500-FI - Vacuum Plasma treatment system
The Henniker Plasma HPT500 low pressure plasma treatment systems are microprocessor controlled bench-top devices that are ideal for routine laboratory, R&D and light industrial tasks.
HPT 500 Fixed Inlet version main specifications:
- The airflow is set, so there is no extra option for adding additional gas into the process. It is the basic version of the device.
- "BenchTop" housing dimensions: W: 553 x H: 600 x D: 615 mm
- Weight: 45 kg
- Rectangular chamber: 240 x 240 x D: 400 mm with three trays, each measuring 195 x 375 mm
- Power: 0…250W, smoothly adjustable with 40 kHz power supply
- User interface: 5.7” TFT touch panel
- Programmable timer: 0…99 min with 1-second resolution
- Power supply: 230 VAC
- The device needs an oil or dry pump for proper operation.
Benefits
- compact benchtop unit
- user friendly TFT interface
- recipe store
- fast treatment time
- precise & repeatable
- no hazardous emissions
