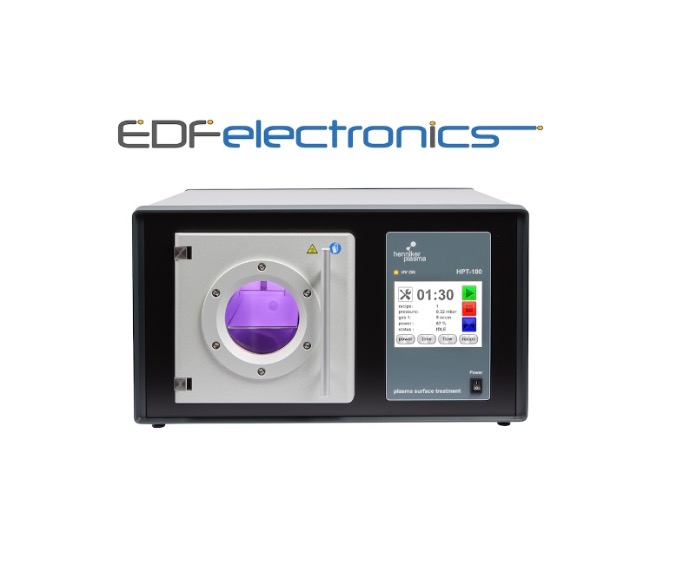

HPT-100 DI - Vacuum Plasma treatment system
The Henniker Plasma low pressure plasma treatment systems are microprocessor controlled bench-top devices that are ideal for routine laboratory, R&D and light industrial tasks.
HPT100-DI Dual inlet
HPT100 includes an integrated pressure gauge and precision gas flow controller as well as a suitable vacuum pump, everything needed for operation. Simple recipes are stored via the intuitive touch screen control and are executed with a single button press and, because we do not use analogue timers or unreliable needle valves, process repeatability is guaranteed each and every time.
Henniker Plasma’s HPT plasma systems are perfect for surface cleaning, surface preparation and surface modification of a wide range of materials including metals, glass, polymers, ceramics, plastics and composites. Key applications include composites joining development, microfluidics PDMS bonding, microscope sample cleaning, optics cleaning, metals cleaning, biomedical applications, polymer science and medical device manufacture.
Due to their ease of use and reliability, they are the instrument of choice for many of the world’s leading companies and institutes, where they are used to activate materials in order to increase wettability and improve adhesion.
HPT 100 Dual Inlet version main specifications:
- Low-pressure plasma cleaning and surface activation device with two automatic flowmeters
- BenchTop housing with dimensions: W: 520 x H: 286 x D: 550 mm
- Weight 22kg,
- Cylindrical chamber Ø 100 x 280 mm,
- Aluminum insert (base) sized 90 x 255 mm
- Power 0...100W smoothly adjustable by a 40 kHz power supply,
- User interface: 5.7" TFT touchscreen panel,
- Programmable timer 0... 99min with 1s resolution,
- Vacuum process measurement and control,
- Power supply 230 VAC
- The device needs an oil or dry pump for proper operation
Plasma Cleaning Example
- Material : HDPE
- Air plasma
- 90 seconds
Before plasma treatment
After plasma treatment
