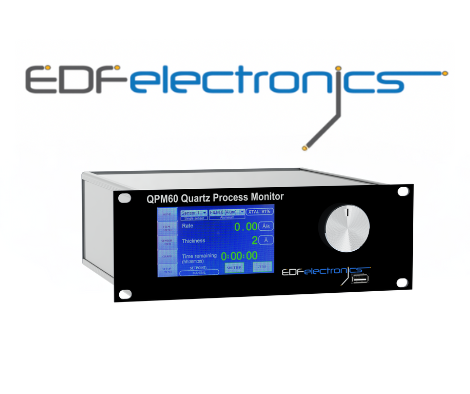

QPM60-4C - Thin film thickness and rate controller

https://www.edfelectronics.com/web/image/product.template/13838/image_1920?unique=6e36b79

4 Channel Thin Film Monitor

0.00 zł 0.0 PLN 0.00 zł

0.00 zł

    This combination does not exist.

    Terms and Conditions
    Lead time 4-6 weeks


    QPM60-4C


    Enclosure Dimensions [mm]

    520 x 286 x 550 – 2U standard

    Weight [netto]

    1.6 kg

    User Interface

    4.3” Colour TFT and rotary encoder

    Communication interface

    RS232 and EthernetIP *

    Inputs channels

    4

    Resolution

    0.01 Hz **

    Thickness resolution

    0.012 A ( density = 1)

    Hardware interfaces

    D/A and RS232 interface fully compatible to SQM160:

    6 programmable analogue outputs for rate,

    4 digital inputs (5V); 4 relay outputs

    thickness recording or power control ( via 4 x programmable BNC outputs )


    * Ethernet for future firmware development

    ** each channel requires external oscillator model QM20-EO
