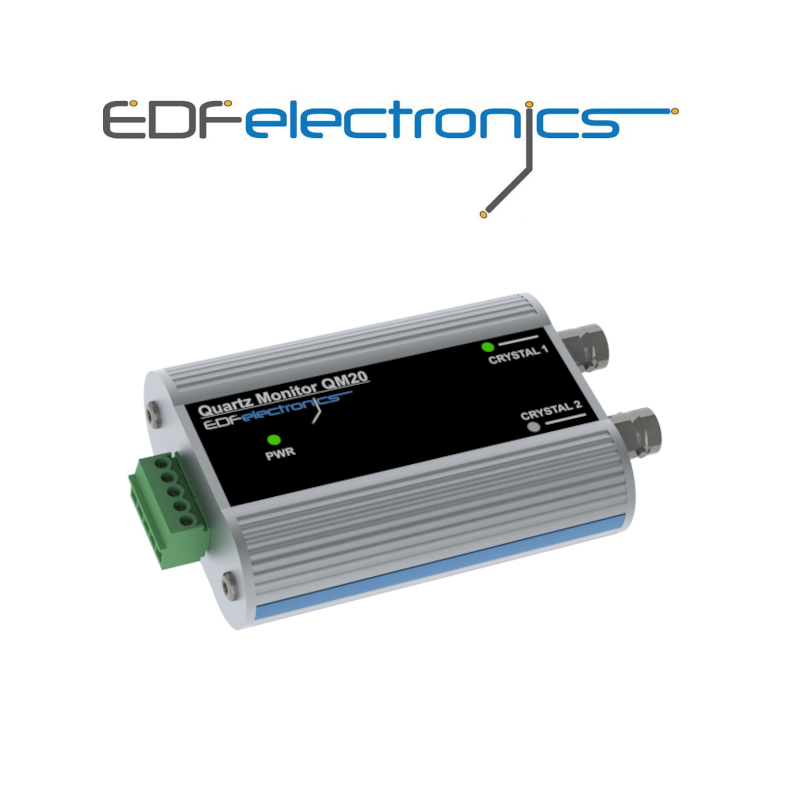

QM20-2-H

https://www.edfelectronics.com/web/image/product.template/14835/image_1920?unique=2eb8b80

Thickness gauges from the QM20 series, in high resolution and an RS232 interface.

0.00 zł 0.0 PLN 0.00 zł

0.00 zł

    This combination does not exist.

    Terms and Conditions
    Lead time 4-6 weeks


    QM20-2-H / RS232 / High resolution

    EDFelectronics offers so called PC based thickness rate monitors QM20 series, which combine the functionality of an oscillator and measurement converter. All monitors are installed between sensor head and superior control unit (e.g. PC or PLC) on atmosphere. The transducer delivers information about quartz frequency, rate, thickness and crystal health via a serial line like RS232, RS485, USB or PoE QM20 series are available with standard and high resolution.


    Technical specifications:

    Interface

    RS-232 2-wire

    Resolution (@ 6MHz)

    0.01 Hz

    Frequency operation

    6 MHz

    Inputs

    2 ( One channel with internal Built-in oscylator only )

    External oscillator

    YES - one channel only

    RS cable length

    20m max (1.5 m included)

    Software

    Windows®
